Tilt Switch Module: Working, Applications, and Integration

Tilt switch modules are essential electronic components used to detect orientation changes. These simple yet effective sensors play a crucial role in various applications, from industrial machinery to consumer electronics. Understanding how they work, their types, and how to integrate them into your projects can help you maximize their functionality.

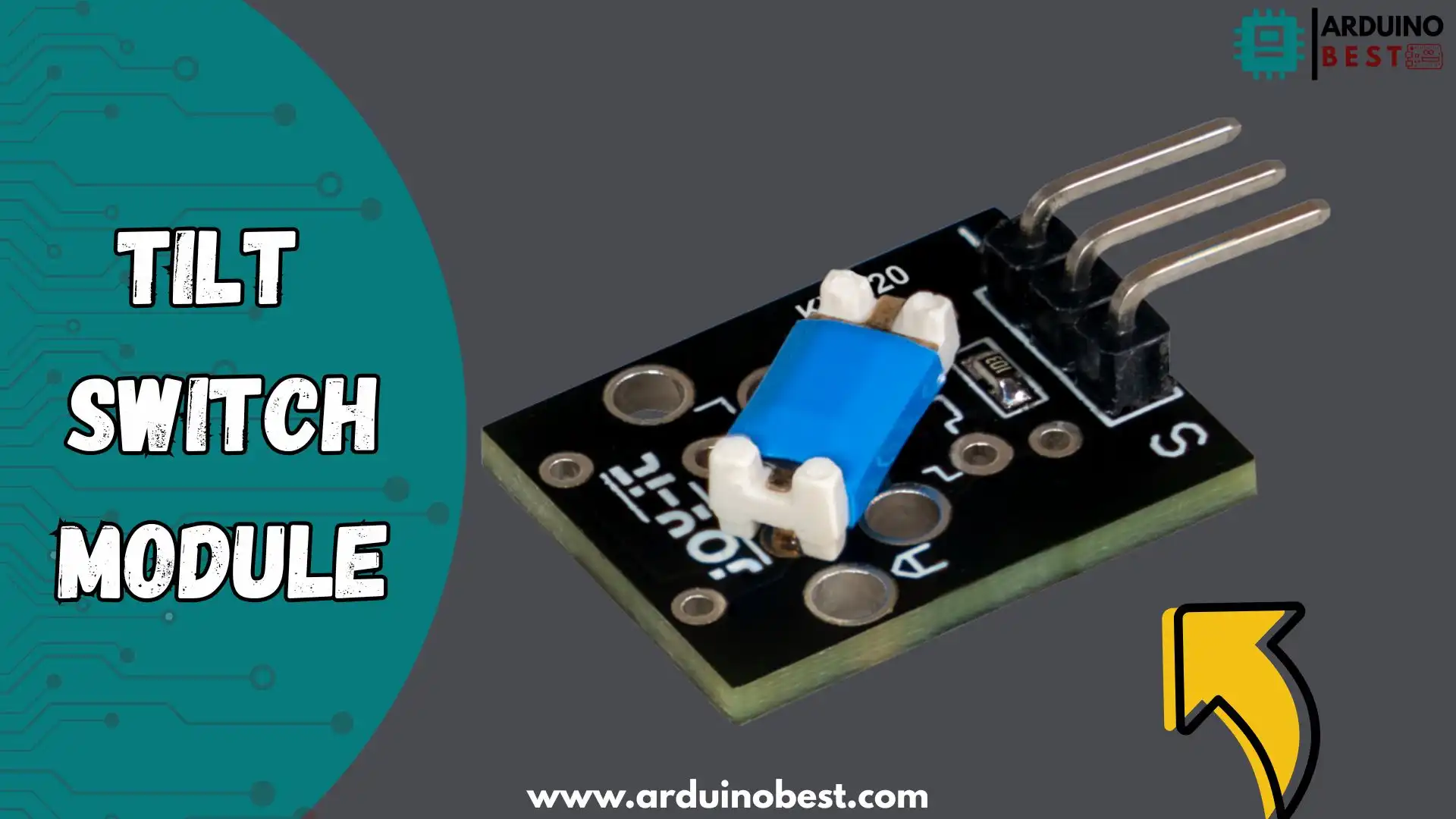

What is a Tilt Switch Module?

A tilt switch module is a sensor that detects changes in inclination. It operates by opening or closing an electrical circuit when tilted beyond a specific angle. These modules are commonly used in safety systems, gaming devices, automotive applications, and smart home gadgets.

Unlike complex gyroscopes or accelerometers, tilt switches offer a cost-effective solution for detecting basic positional changes. Their low power consumption, simple design, and easy integration make them a popular choice for many projects.

How Tilt Switch Modules Work

Tilt switches contain a small conductive element (such as a metallic ball or liquid mercury) inside a sealed casing. When tilted, the conductive material moves and either establishes or breaks an electrical connection. The module then sends a digital output signal to indicate a change in position.

For a detailed technical explanation of how these sensors work, check out this guide on tilt switch principles for a deeper understanding.

Types of Tilt Switch Modules

There are several types of tilt switches, each with unique characteristics:

Ball Tilt Switches – Contain a metal ball that rolls inside the casing to complete the circuit.
Mercury Tilt Switches – Use liquid mercury to create an electrical connection (now less common due to environmental concerns).
Solid-State Tilt Sensors – Utilize MEMS (Micro-Electro-Mechanical Systems) technology for improved precision and durability.

Common Applications of Tilt Switch Modules

Tilt switches are widely used in various industries due to their simplicity and reliability. Some of the most common applications include:

Smartphones and Tablets – Detect orientation changes for screen rotation.
Automotive Safety Systems – Used for rollover detection in vehicles.
Industrial Equipment – Integrated into machinery to prevent unsafe tilts.
Gaming and Virtual Reality – Enable motion-based input in controllers and headsets.
Home Automation – Used in smart lighting and security systems.

For more on their role in industrial settings, check out this overview of sensor applications in automation.

How to Interface Tilt Switch Modules with Microcontrollers

Using Tilt Switch Modules with Arduino

Components Needed:

Arduino Board
Tilt Switch Module (e.g., KY-020)
Connecting Wires
LED (optional for output verification)

Circuit Diagram and Connections:

Connect one leg of the tilt switch to a digital input pin on the Arduino.
Connect the other leg to GND (Ground).
Use a pull-down resistor (10kΩ) to prevent floating values.

Sample Code:

const int tiltPin = 2;
const int ledPin = 13;
void setup() {
  pinMode(tiltPin, INPUT);
  pinMode(ledPin, OUTPUT);
}
void loop() {
  if (digitalRead(tiltPin) == HIGH) {
    digitalWrite(ledPin, HIGH);
  } else {
    digitalWrite(ledPin, LOW);
  }
}

This simple program turns on an LED when the sensor is tilted.

Using Tilt Switch Modules with Raspberry Pi

Connections:

Connect one leg of the tilt switch to a GPIO pin.
The other leg goes to GND.
Use a pull-down resistor (10kΩ) to stabilize the signal.

Python Code Example:

import RPi.GPIO as GPIO
import time

tilt_pin = 17
GPIO.setmode(GPIO.BCM)
GPIO.setup(tilt_pin, GPIO.IN, pull_up_down=GPIO.PUD_DOWN)

while True:
    if GPIO.input(tilt_pin):
        print("Tilt Detected!")
    time.sleep(0.1)

This script prints “Tilt Detected!” when the switch is triggered.

Advantages and Limitations

Advantages:

Simple design – Easy to integrate with existing circuits.
Low cost – Affordable for hobbyists and industrial use.
Reliable performance – Works in various environmental conditions.

Limitations:

No precise angle measurement – Can only detect tilt events, not exact angles.
Mechanical wear – Ball-based switches may degrade over time.
Vibration sensitivity – May trigger false positives in high-vibration environments.

Troubleshooting Common Issues

1. Sensor Not Responding

Check the wiring and ensure correct connections.
Verify that the module receives the proper voltage.

2. False Triggering

Secure the sensor to minimize vibrations.
Use software debouncing to reduce noise.

3. Inconsistent Readings

Inspect for loose components or damaged wiring.
Try a different sensor to rule out hardware defects.

Best Practices for Using Tilt Switch Modules

Mount securely to avoid accidental movements.
Use debounce filtering in software to reduce false triggers.
Regularly test and calibrate the sensor for consistent operation.

FAQs

What is the difference between a tilt switch and a tilt sensor?

Tilt switches provide a binary on/off signal, while tilt sensors can measure the exact angle of inclination.

Can tilt switches detect precise angles?

No, they only detect whether the module has been tilted beyond a certain threshold.

Are mercury tilt switches still used?

Due to environmental concerns, mercury switches are being replaced by ball-based and solid-state alternatives.

How can I prevent false triggering?

Use software debouncing and mount the sensor securely to reduce accidental movements.

Can tilt switches work in high-vibration environments?

They may not be reliable in such conditions, as excessive vibrations can trigger false readings.

Conclusion

In conclusion, tilt switch modules are versatile and valuable components that provide an easy solution for detecting changes in orientation or tilt. Whether you’re working on a hobbyist project or a complex industrial system, these modules offer a cost-effective way to monitor movement. Their simplicity, coupled with their reliable performance, makes them a popular choice in a variety of applications, including consumer electronics, robotics, and safety systems.

By understanding how tilt switches work, selecting the right module for your specific needs, and integrating them properly into your designs, you can enhance the functionality of your projects. Additionally, having a basic understanding of troubleshooting common issues ensures that you can quickly address potential challenges. As you continue exploring and experimenting with tilt switch modules, their potential for innovation is vast, making them an essential tool for engineers, hobbyists, and designers alike.

If you’re looking for more detailed insights on sensor technologies, explore this comprehensive guide to electronic sensors for further learning.
