Finger Detect Heartbeat Module: How It Works & Best Uses

Introduction

Monitoring heart rate is essential for health tracking, fitness, and medical diagnostics. One of the simplest and most effective ways to measure heart rate is using a finger detect heartbeat module. These compact and affordable sensors provide an easy-to-use solution for DIY electronics, wearable technology, and biomedical projects.

This article will cover everything you need to know about finger heartbeat detection modules, including how they work, their applications, and how to integrate them into your projects.

What is a Finger Detect Heartbeat Module?

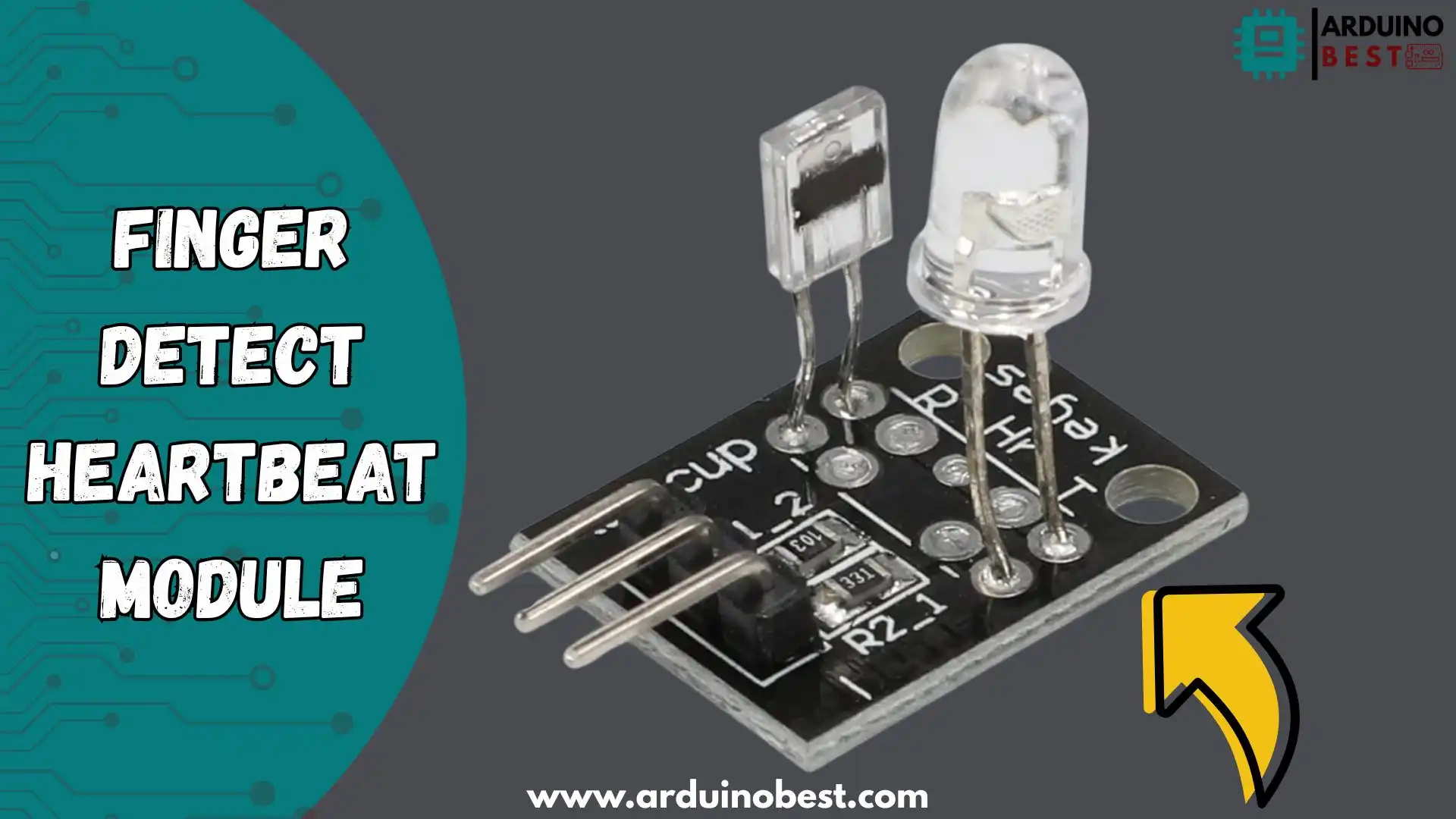

A finger heartbeat detection module is a small electronic device that measures the pulse rate by detecting blood flow variations in the fingertip. It typically consists of:

Infrared LED – Emits light that penetrates the skin to detect blood flow.
Phototransistor – Captures the reflected light to sense changes in blood volume.
Signal Processing Circuit – Amplifies and filters the data to extract heart rate information.
Microcontroller Compatibility – Enables integration with platforms like Arduino and Raspberry Pi.

How It Works

The module operates based on Photoplethysmography (PPG), a technique that measures changes in blood volume through light absorption. When the heart pumps blood, the light absorption fluctuates, allowing the module to determine the pulse rate.

Learn more about Photoplethysmography from NIH.

Key Features of a Finger Detect Heartbeat Module

Non-invasive – Uses optical sensing, eliminating the need for electrodes.
Compact and lightweight – Ideal for integration into wearables.
Low power consumption – Suitable for battery-operated devices.
High sensitivity – Detects small variations in blood volume.
Real-time monitoring – Provides continuous heart rate data.

Comparison with Other Heartbeat Sensors

Feature	Finger Detect Heartbeat Module	ECG Sensor
Measurement Type	Optical (PPG)	Electrical (Electrodes)
Contact with Skin	Light-based detection	Requires direct skin contact
Accuracy	Moderate	High
Application	Wearables, fitness tracking	Medical-grade devices

For an in-depth comparison of heart rate sensors, check out this resource.

Applications of Finger Heartbeat Detection Modules

These modules have a wide range of applications, including:

Fitness and Wearable Devices – Smartwatches, fitness bands, and health monitors.
Medical Monitoring – Patient health tracking, heart rate variability studies.
DIY and Educational Projects – Hobbyists and students use them in IoT projects.
Sports Science – Performance analysis for athletes.
Stress Monitoring – Heart rate tracking for mindfulness and relaxation exercises.

How to Use a Finger Detect Heartbeat Module with Arduino

Hardware Requirements

Finger detect heartbeat module (e.g., KY-039)
Arduino board (e.g., Arduino Uno)
Jumper wires
OLED Display (optional for visualization)

Wiring Diagram

Module Pin	Arduino Pin
VCC	5V
GND	GND
Signal	A0

Sample Arduino Code

int sensorPin = A0;
void setup() {
  Serial.begin(9600);
}
void loop() {
  int sensorValue = analogRead(sensorPin);
  Serial.println(sensorValue);
  delay(500);
}

Code Explanation

Reads analog values from the sensor.
Prints the data to the serial monitor.
Delay ensures smooth data acquisition.

Challenges and Limitations

1. Sensitivity to Motion

Excessive hand movement can cause inaccurate readings.
Solution: Use a signal filtering algorithm to smooth out noise.

2. Environmental Factors

Ambient light interference affects measurement accuracy.
Solution: Shield the sensor from external light sources.

3. Skin Tone and Temperature

Variations in skin pigmentation and temperature can impact readings.
Solution: Adjust sensor placement and calibration.

Future Trends in Heartbeat Detection Technology

AI and Machine Learning Integration – Improving accuracy through advanced signal processing.
Wireless Connectivity – Integration with Bluetooth and Wi-Fi for real-time data sharing.
Miniaturization – Making sensors even smaller for seamless wearable integration.
Smartphone Compatibility – Allowing mobile-based heart rate tracking through dedicated apps.

FAQs

How accurate is a finger heartbeat detection module?

It provides reliable results but is not as precise as ECG-based sensors used in medical applications.

Can I use this module for continuous heart rate monitoring?

Yes, but it is best used for short-term tracking due to sensitivity to movement and environmental factors.

Do these modules work with Raspberry Pi?

Yes, they can be interfaced using an ADC (Analog-to-Digital Converter) since Raspberry Pi lacks built-in analog pins.

Are these modules safe for health monitoring?

Yes, they use non-invasive optical sensing and are safe for daily use.

Conclusion

Finger detect heartbeat modules provide a simple yet effective way to monitor heart rate using optical sensing technology. These modules have become essential in various applications, from fitness tracking to medical monitoring and DIY electronics projects. Their affordability, compact size, and ease of integration make them a popular choice for developers and health enthusiasts alike.

By understanding how these modules work, selecting the right sensor for your needs, and properly implementing them in your projects, you can achieve accurate and real-time heart rate monitoring. Whether you’re building a wearable fitness tracker, a health monitoring system, or an Arduino-based project, these sensors offer a reliable and efficient solution.

Despite their advantages, finger heartbeat sensors may be affected by external factors such as motion artifacts and ambient light interference. However, with proper calibration and filtering techniques, these issues can be minimized to ensure more precise readings.

As technology advances, these sensors will continue to improve in accuracy and reliability, making personal health monitoring more accessible than ever. With the growing interest in wearable health devices and IoT-based medical applications, the future of finger detect heartbeat modules looks promising, paving the way for smarter and more connected healthcare solutions.
